主要用途Main application
雙拉絲機是一種在常溫下將轎車輪胎輪轂內的兩股粗鋼絲拉出的設備，其主要目的是延長后續破碎設備的使用壽命

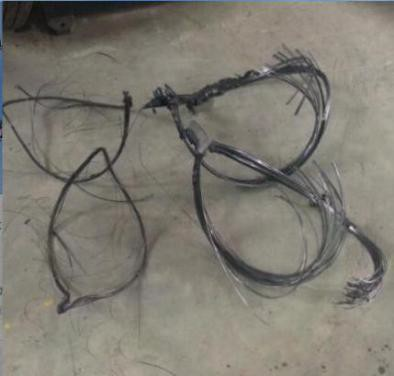

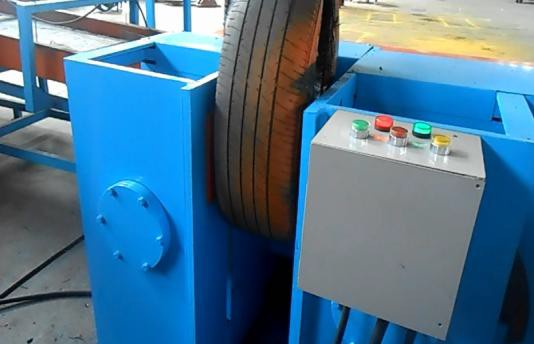

The car tire twin hooks debeader pull-out the double car tire bead wire in one time at room temperature in order to extend the blades lifespan in shredding and crushing process.
設備特點Equipment features

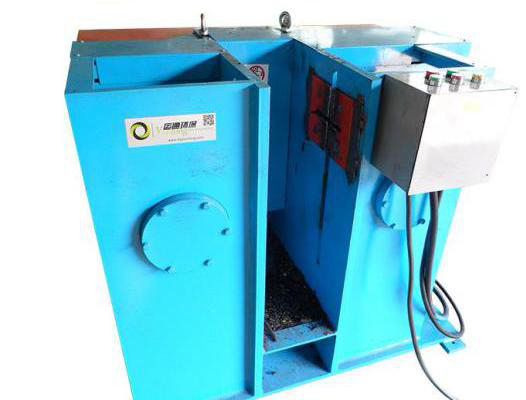

電機、減速機全部固定在機架上，設備整體結構簡單。外形美觀、噪音低。占地面積小、便于運輸和安裝；
Motor and gear reducer fixed on the framework of equipment,the equipment’ structure is simple.Nice appearance and low noise .The floor space of equipment is small for easily transported and installed.
雙拉鉤設計，同時工作，同一輪胎的兩側輪轂鋼絲同時拉出,生產效率高，操作簡單。
Twin hook design working in the same time,pulled-out the tire bead wire simultaneously,high efficiency and easily operated.
主要技術參數Main technical spec
設備型號Equipment model | ZL650 |
電機功率 Motor power（Kw） | 7.5 |
輪胎外徑Tire size（mm） | Φ≤650 |
小時生產能力Capacity（條 Pcs/h） | 70-100 |
拉鉤使用壽命Hook lifespan（h） | 6000-12000（ 堆焊重復使用）刪除 Surfacing and grinding repeatedly |
外型尺寸Size（L×W×H mm） | 1330×920×1030 |
設備重量Weight（Kg） | 1300 |
